Knowledge- and Statistics-Based QSAR Software - Free Trial
Fujifilm Corporation offers a QSAR software package that combines both knowledge-based and statistical-based models.
Software Features
Knowledge-based model
- Equipped with a metabolic reaction simulator, it reproduces the metabolic reactions of chemicals under Ames test conditions, reducing the risk of false positives.
- For each metabolite generated by the metabolic reaction simulator, the mutagenicity is predicted using the knowledge-based model.
- If any metabolite has a positive structure, the compound is judged as positive.
Statistical-based model
- Includes more than 6,000 high-quality test data cases, which were acquired from GLP facilities.
- In addition to pharmaceuticals, a wide variety of structural data for applications like dyes, liquid crystals, and dispersed materials are also suitable, and accurate prediction of new compounds can be expected.

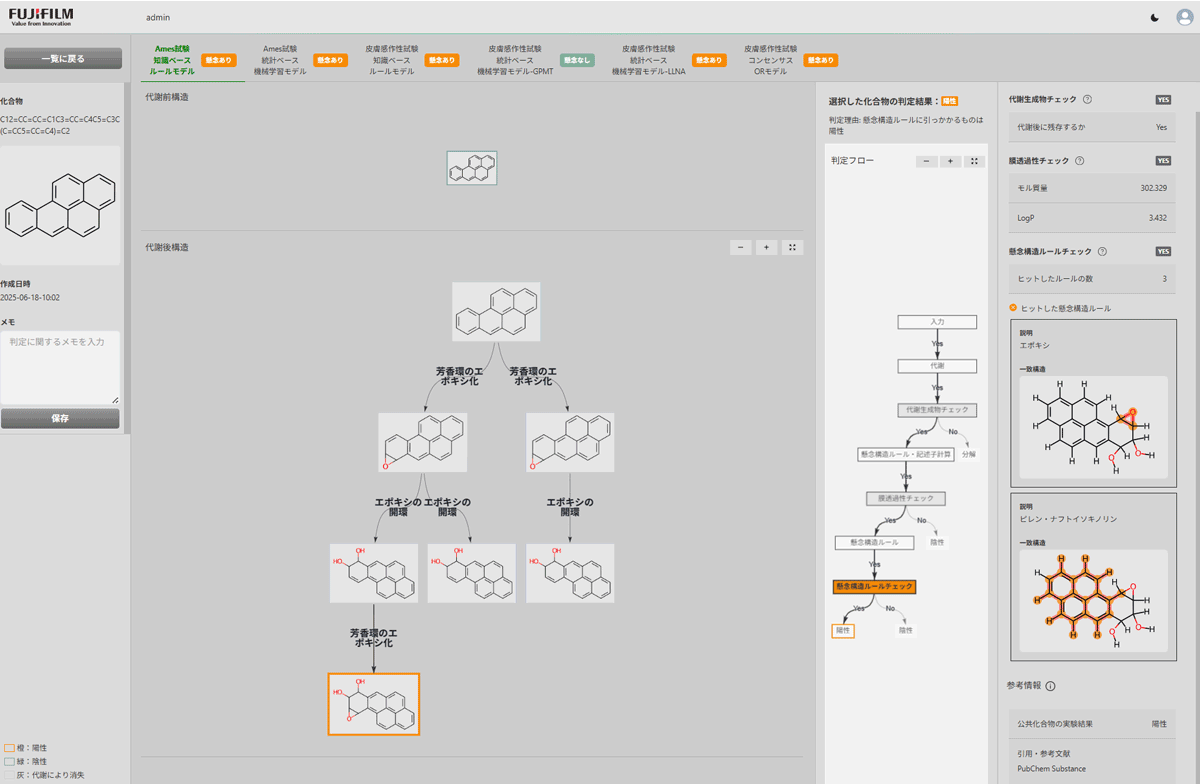

User Interface
- The software is a web application that does not require installation, so it can be used immediately from a browser.
- Intuitive and lightweight operation of the UI.
- Prediction of 1,000 chemical substances can be done in about 10 minutes.
- Prediction results can easily be exported to csv files.
Confidentiality of information
- Compound data (structural formula) is handled only within the cloud system.
- To protect confidentiality, the system is isolated from third parties, including Fujifilm Corporation, the software developer.
Two Types of QSAR Models: Knowledge-Based and Statistical-Based
The ICH-M7 guidelines recommend the use of two complementary QSAR models (knowledge-based and statistical).
FUJIFILM Corporation has developed an unprecedented QSAR software that combines two QSAR models: a knowledge-based model that incorporates a proprietary metabolic reaction simulator and a statistical-based model that incorporates various compound information cultivated through product development to date.

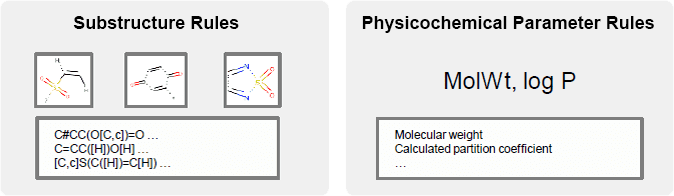

Knowledge-based model
Common to all positive chemicals
- Substructure (toxicity-causing structures)
- Rule-based physicochemical parameters

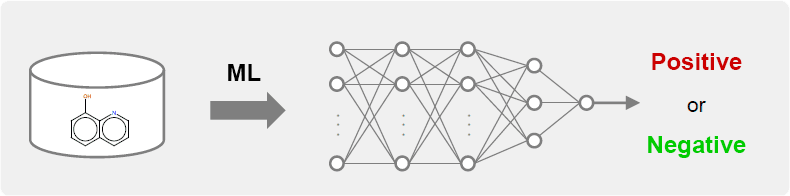

Statistical-based model (AI)
By machine learning,
- Estimated values of physical properties (descriptors)
- Models are trained based on features such as the presence or absence of specific structures (fingerprints)
*Presented at the 50th Annual Meeting of the Japanese Society of Toxicology (June 2023)
「Design and development of compound safety prediction system including AMES prediction considering metabolism」

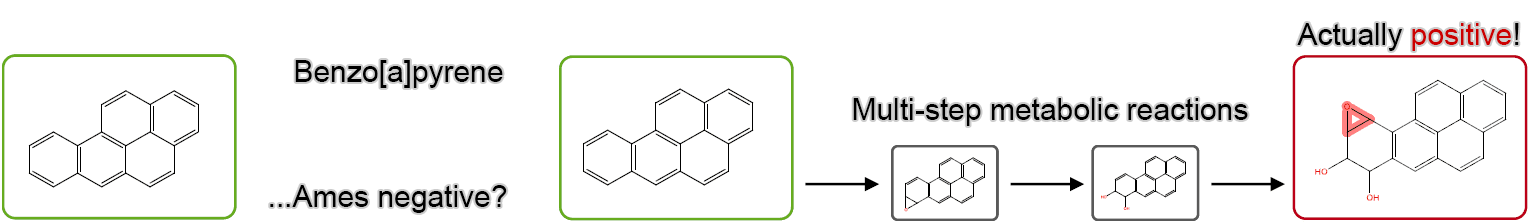

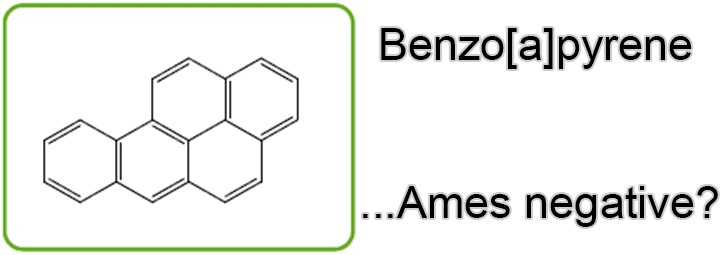

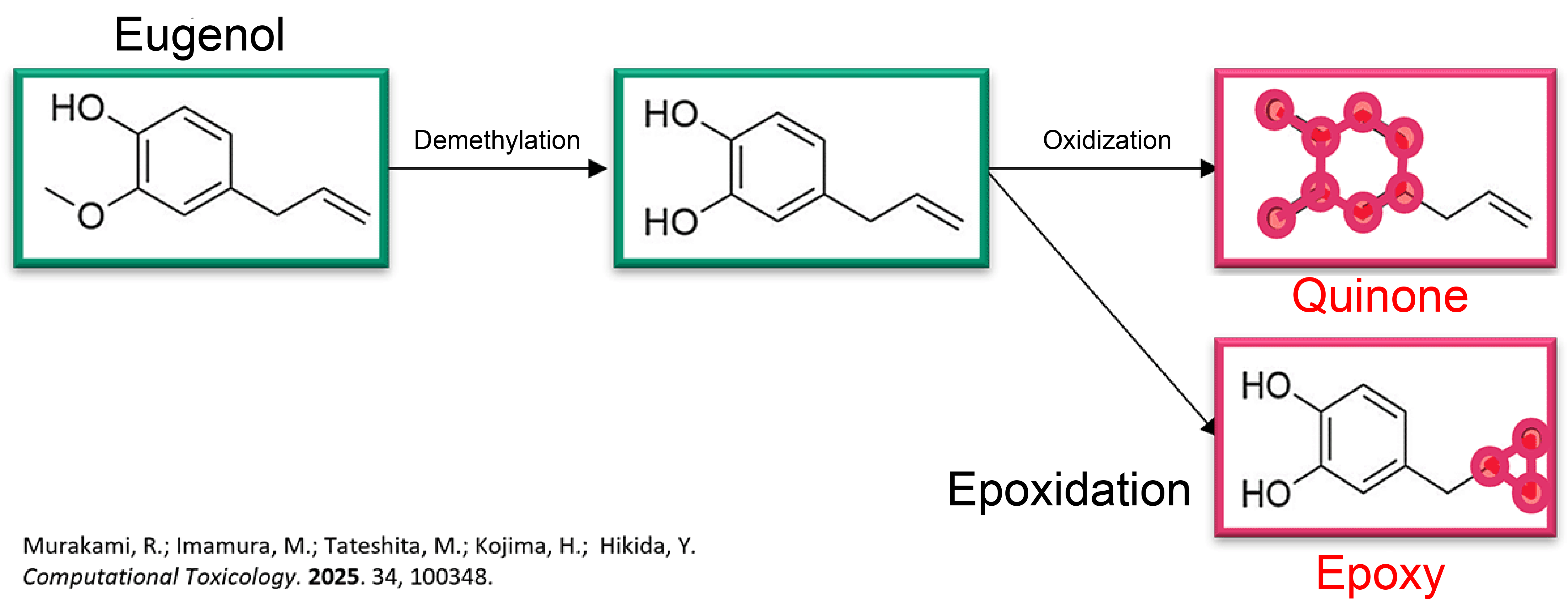

Knowledge-Based Model: The Importance of Considering Metabolic Reactions
Because Ames tests are also performed in the presence of the S9 enzyme, the structure that a chemical substance can take in the test is not only the input structure itself.
By taking metabolic reactions into account, “false negatives,” which imply an incorrectly predicted negative result for a substance that is actually positive, can be reduced.

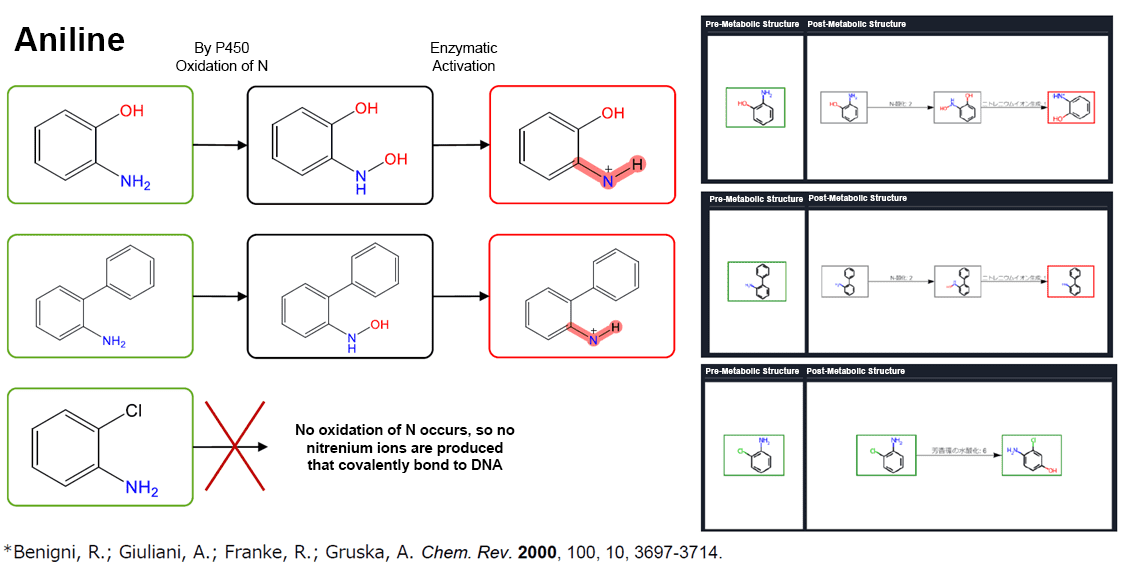

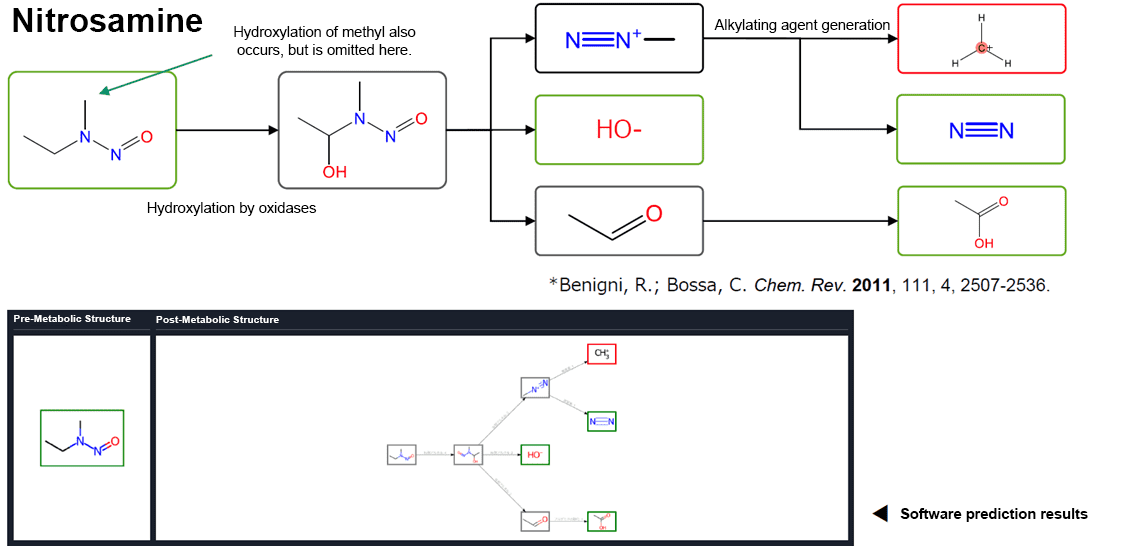

Knowledge-Based Model: Prediction Example
Knowledge-Based Model: Considering Metabolic Reactions — Evaluation of Prediction Performance
Comparison of prediction performance with and without considering metabolic reactions
•Validated using about n=300 public data (Annual Meeting of the Japanese Society for Environmental Mutagenomics, 2023)
| Indicators | When S9 metabolism is not taken into account | When S9 metabolism is taken into account |
|---|---|---|
| Positive substances are judged as positive | 64% | 77% |
| Negative substance is judged as negative | 88% | 85% |
Statistical-Based Model: Characteristics of Ames Test Data Used In This Prediction Model
Includes more than 6,000 cases of high-quality test data, which were acquired from GLP facilities.
Various structural data including dyes, liquid crystals, dispersion materials, etc., in addition to pharmaceuticals
⇒Compared to public data sets, the chemical space is large.

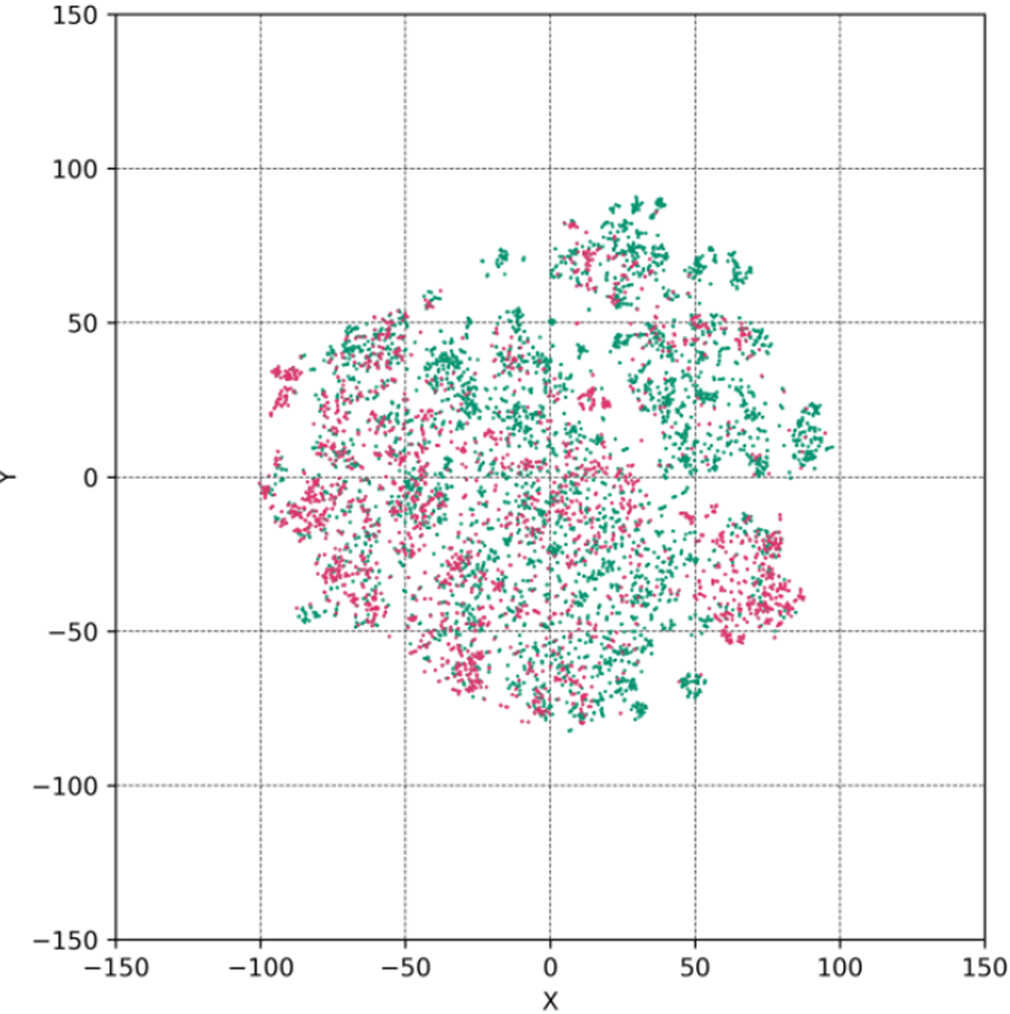

- Calculation of chemical fingerprints and compare distributions using t-SNE (nonlinear dimensionality reduction algorithm)
- This training data includes public chemical substance data.
● Public chemical substance data (NTP, J-CHECK, workplace safety sites, etc.)
● Training data of FUJIFILM model
